Basic

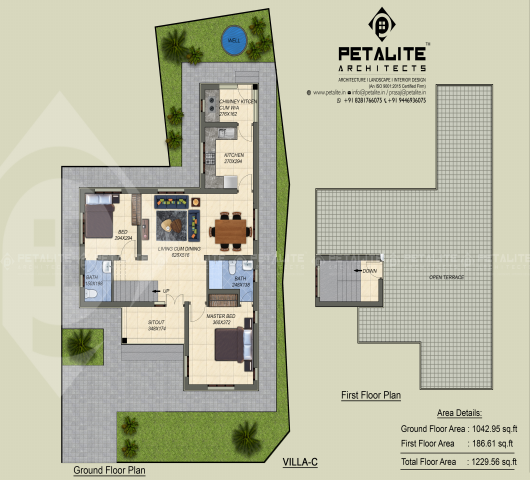

1230 SQFT

One of the most important aspects of any villa is its general design, in terms of architecture, landscaping, interior design, etc. All these elements combine to create the general atmosphere. The best modern villas are truly a sight to behold, with a unique character that expresses itself in the overall aesthetics of the structure, its surroundings and the interior

  • Tittle:Basic
  • Type:Villa
  • Budget:Budget-Friendly

Foundation & Basement (Random Rubble Masonry)

  1. Foundation (60 Width X 75 Height) cm
  2. Basement (45 Width X 60 Height) cm or Same level of the existing
  3. RCC Belt Including 15cm Thick RCC Belt and throughout the building Ratio 1:2:4

Super Structure

  1. Solid Block Work Ground Floor - Solid Block Work Masonry (24cm Thick Wall)
  2. (with cement mortar 1:7 Ratio & height of the roof 3.10Meter )
  3. including the 10cm thick slab

Lintel Works

  1. Lintel would be placed on the entire wall (Lintel at 2.1m)
  2. 8" mm Steel bar 4No's with Stirrups
  3. 21cm width or Same as the wall width and 15cm thick , Ratio 1:2:4

Roof Slab

  1. RCC Flat - 10cm thick slab with Leak Proof
  2. Ratio - 1:2:4, Using 20mm 3/4" normal size brocken stone

Material Details

  1. i. Sand Block Work - M Sand Concrete - M Sand
  2. Cement ACC, Malabar, Dalmia, Ramco, Chettinad, Ambuja
  3. Steel Kairali, Prince, Metcon, Vyshak

Plastering Ratio

  1. Roof Plastering 1:4 RCC Flat - 10cm thick slab with Leak Proof
  2. Wall Plastering 1:6

Material Details

  1. i. Sand Block Work - M Sand Concrete - M Sand
  2. Cement ACC, Malabar, Dalmia, Ramco, Chettinad, Ambuja
  3. Steel Kairali, Prince, Metcon, Vyshak

ELECTRICAL WORKS

  1. Wires - V Guard (ISI Marked)
  2. Modular Switches - V Guard (ISI Marked)
  3. ELCB & Circuit Breaker - Standard / Havells.
  4. Provision for Fittings - Tube lights, fan, fancy fittings, chandelier,exhaust fan, A/C etc.
  5. Geyser provision in all bath rooms
  6. Exhaust fan for all bath rooms

Provisions for bed room

  1. Two Numbers of Light Points
  2. One Ceiling Fan Point
  3. One A/C Point (For All Bed rooms, Living & Dining)
  4. Two Numbers of Plug Points & enough switches
  5. Two way control for 1 light point & fan point for bed room and staircase

PLUMBING & SANITATION

  1. PVC Pipes - ISI Marked
  2. C.P. Fitting : Capstone / Zew or Equivalent
  3. Long Body Taps
  4. Health Faucets
  5. Angle Valves
  6. Shower set
  7. Pillar Taps for Bathrooms
  8. Pillar Taps For Hall
  9. W Closet (Fullset)
  10. Wash Basin - Bath Room
  11. Wash Basin - Dining
